About EPDM Gym Tiles
Gravolite EPDM Gym Tiles are crafted from virgin Ethylene Propylene Diene Monomer (EPDM) rubber for superior color stability, weather resistance, and long-lasting durability.
Designed for indoor and outdoor gyms, high-end sports facilities, functional training zones, and playgrounds,
these tiles deliver exceptional shock absorption, slip resistance, and noise reduction.
Available in Classic, Smooth, Sandwich, Hexagonal, and 100% Coloured EPDM variants,
they are built to perform under extreme GCC climate conditions
while maintaining vibrant color and surface quality.
✨ Key Features
Engineered to perform under extreme GCC conditions with unmatched durability, safety, and style.
Classic EPDM Gym Tiles
| Specification | 500×500 mm | 1000×1000 mm |
|---|---|---|
|
Type Thickness Weight per Tile Colors Material Composition Granule Size Technology Certifications Tensile Strength Elongation at Tear Density Specific Gravity Compression Set Temperature Resistance Abrasion Resistance Shore Hardness *Note |
V-Groove 10 mm – 50 mm 2.5 kg – 12.5 kg* Multiple solid/fleck options Virgin EPDM rubber crumb, polymer bonded 0.8 mm – 2 mm Hot Molded IS: 3400, IS: 1237, ASTM D 792, ASTM D 1709, ASTM D 2240 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% -40°C to +150°C ≤0.6% weight loss 60–70 Shore A *Varies by thickness. <br |
V-Groove 10 mm – 50 mm 10 kg – 50 kg* Multiple solid/fleck options Same as 500×500 mm 0.8 mm – 2 mm Hot Molded Same 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% -40°C to +150°C Same Same *Varies by thickness. |
Smooth EPDM Gym Tiles
| Specification | 500×500 mm | 1000×1000 mm |
|---|---|---|
|
Type Thickness Weight per Tile Colors Material Composition Granule Size Technology Certifications Tensile Strength Elongation at Tear Density Specific Gravity Compression Set Temperature Resistance Abrasion Resistance Shore Hardness *Note |
V-Groove 10 mm – 50 mm 2.5 kg – 12.5 kg* Solid color Virgin EPDM rubber powder, polymer bonded Fine EPDM rubber powder Hot Molded IS: 3400, IS: 1237, ASTM D 792, ASTM D 1709, ASTM D 2240 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% -40°C to +150°C ≤0.6% weight loss 60–70 Shore A *Varies by thickness. |
V-Groove 10 mm – 50 mm 10 kg – 50 kg* Solid color Same Fine EPDM rubber powder Hot Molded Same 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% Same Same Same *Varies by thickness. |

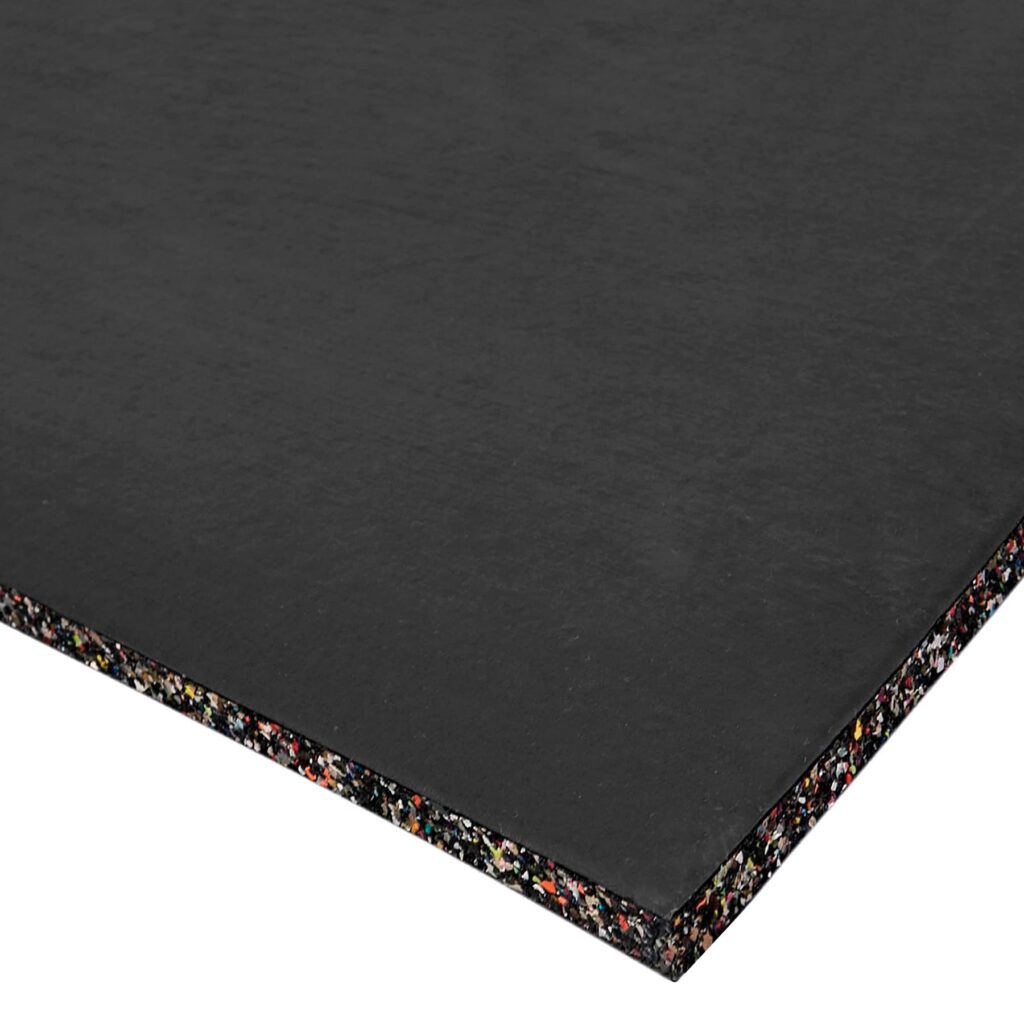

Sandwich EPDM Gym Tiles
| Specification | 500×500 mm | 1000×1000 mm |
|---|---|---|
|
Construction Thickness Weight per Tile Colors Material Composition Top Layer Thickness Technology Certifications Tensile Strength Elongation at Tear Density Specific Gravity Compression Set Temperature Resistance Abrasion Resistance Shore Hardness *Varies by thickness. |
Dual-layer (wear layer + shock-absorbent base) 20 mm – 50 mm 5 kg – 12.5 kg* Custom blends / solid colors Virgin EPDM top layer + softer EPDM/SBR hybrid base 3–8 mm Hot Molded, Dual-Density IS: 3400, IS: 1237, ASTM D 792, ASTM D 1709, ASTM D 2240 1.8 MPa 1.2 990–1000 kg/m³ 1.00 ≤1% -40°C to +150°C ≤0.6% weight loss Top: 65–75 Shore A; Base: 55–65 Shore A *Varies by thickness. |
Same 20 mm – 50 mm 20 kg – 50 kg* Custom blends / solid colors Same 3–8 mm Hot Molded, Dual-Density Same 1.8 MPa 1.2 990–1000 kg/m³ 1.00 ≤1% Same Same Same *Varies by thickness. |
Hexagonal EPDM Tiles
| Specification | 18″ × 18″ (457 × 457 mm) |
|---|---|
|
Shape Thickness Weight per Tile Colors Material Composition Surface Finish Shock Absorption Noise Reduction Tensile Strength Elongation at Tear Density Specific Gravity Compression Set Temperature Resistance Abrasion Resistance Shore Hardness |
Hexagon 10 mm – 20 mm 2.2 kg – 4.5 kg* Multiple solid/fleck colors Virgin EPDM rubber crumb, polymer bonded Textured slip-resistant High Yes 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% -40°C to +150°C ≤0.6% weight loss 60–70 Shore A |
Coloured EPDM Tiles (100% Blue & Grey)
| Specification | 500×500 mm | 1000×1000 mm |
|---|---|---|
|
Type Thickness Weight per Tile Colors Material Composition Granule Size Technology Certifications Tensile Strength Elongation at Tear Density Specific Gravity Compression Set Temperature Resistance Abrasion Resistance Shore Hardness *Varies by thickness. |
500×500 mm V-Groove 10 mm – 50 mm 2.5 kg – 12.5 kg* 100% Blue / 100% Grey 100% Virgin EPDM (no SBR) 0.8 mm – 2 mm Hot Molded IS: 3400, IS: 1237, ASTM D 792, ASTM D 1709, ASTM D 2240 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% -40°C to +150°C ≤0.6% weight loss 60–70 Shore A *Varies by thickness. |
1000×1000 mm V-Groove 10 mm – 50 mm 10 kg – 50 kg* 100% Blue / 100% Grey 100% Virgin EPDM (no SBR) 0.8 mm – 2 mm Hot Molded Same 1.8 MPa 1.2 1000 kg/m³ 1.00 ≤1% Same Same Same *Varies by thickness. |
Why Choose Gravolite for EPDM Gym Tiles?
☀️ Tailored for GCC
Withstands high UV, heat, and weather challenges.
💎 Premium Virgin EPDM
Ensures superior color stability and long-lasting durability.
🎨 Multiple Styles & Customization
Options for every flooring need and aesthetic requirement.
🌐 Global Quality
Trusted and supplied across UAE, Saudi Arabia, Qatar, Oman, and beyond.
🔧 Turnkey Supply & Installation
From consultation to execution, complete solutions delivered.
Build Your Arena with Gravolite
From luxury gyms to outdoor training zones and playgrounds, Gravolite EPDM Tiles deliver a perfect blend of premium aesthetics and elite performance.
Choose from custom thicknesses, colors, and branding options, backed by our global delivery and end-to-end installation support to ensure your facility stands out and performs at the highest standard.
FAQ'S
Virgin EPDM offers superior UV resistance, weather performance, and lifespan — ideal for outdoor and high-end installations.
Yes — they’re hygienic, aesthetic, and safe for all indoor facilities.
10–15 mm: Light use areas
15–25 mm: Functional training
25–50 mm: Heavy weights / CrossFit
Yes — Blue and Grey options are 100% virgin EPDM.
Yes — we offer custom color blends, solids, and logo embedding.
Tailored To Your Needs-Size Thickness Color Customization Available.
High-Precision Manufacturing
Functional with Elegance
Industry-Recommended
Custom-Made Excellence
Build Your Arena with Gravolite
From luxury gyms to outdoor training zones and playgrounds, Gravolite EPDM tiles combine premium looks with elite performance. Choose from custom thicknesses, colors, and branding, with global delivery and installation support.
